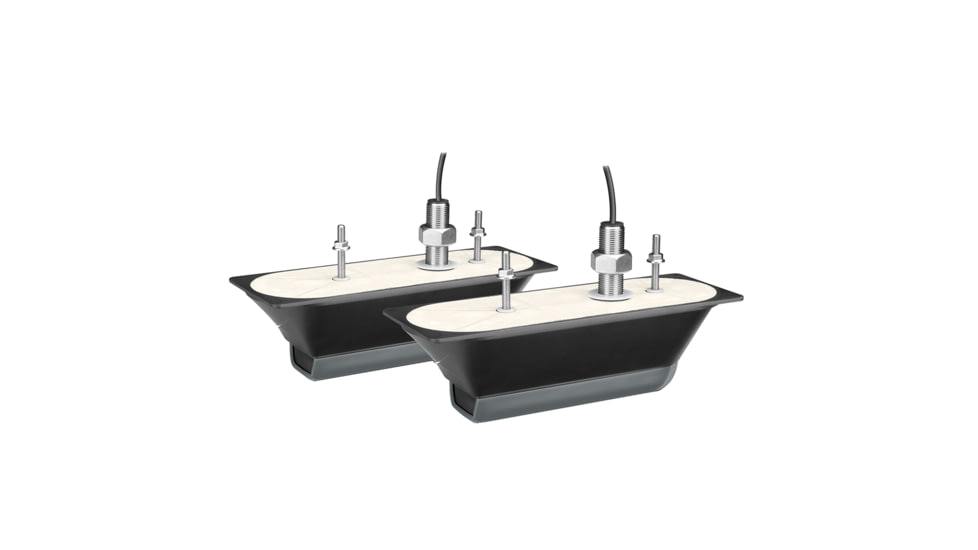

Garmin CV51M-THP Mid Band Traditional/DownVü/SideVü CHIRP Transducer Pair

Garmin CV51M-THP Mid Band Traditional/DownVü/SideVü CHIRP Transducer Pair - 12-Pin 69313
Garmin CV51M-THP Mid Band Traditional/DownVü/SideVü CHIRP Transducer Pair - 12-Pin 69313
1 of 1 images
Garmin CV51M-THP Mid Band Traditional/DownVü/SideVü CHIRP Transducer Pair - 12-Pin 69313

Tap Tap to Zoom

Questions & Answers
Color:
Black
Frequency Band:
260 kHz
Cable Length:
30 ft

Code: GA-F1T-CWR6401-010-12761-11

MPN: 010-12761-11

UPC: 753759204747

Product No Longer Available

Product Info for Garmin CV51M-THP Mid Band Traditional/DownVü/SideVü CHIRP Transducer Pair

CV51M-THP Mid Band Traditional/DownV/SideV CHIRP Transducer Pair - 12-PinPerfect for the coastal and offshore fisherman who want CHIRP traditional sonar CHIRP ClearV and CHIRP SideV scanning sonar with stainless steel stems this pair of thru-hull mounted transducers consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects structure and fish that pass below and to each side of your boat and is optimized for rough sea conditions.The CHIRP ClearV/ SideV elements have a power rating of 500 W per element (1000 W total) and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.CV51M-THP includes a 12-pin port/starboard transducers with stainless steel stems fairing blocks Y-cable bushings mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.Frequency: CHIRP Mid-band (80-160 kHz); ClearV/SideV CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)image

Features of Garmin CV51M-THP Mid Band Traditional/DownVü/SideVü CHIRP Transducer Pair

  • Cable Length (Feet): 30'
  • Chirp: Medium/Non Traditional
  • Fairing Block Included: Yes
  • Frequency: 80-160/260/455
  • Imagining: Standard/Down/Side
  • Mounting Style: Thru-Hull
  • Pins: 12
  • Power: 600w/500w
  • Speed Included: No
  • Supported Deadrise/Transom Angles: Up to 25
  • Temperature: Yes

Package Contents:

  • Garmin CV51M-THP Mid Band Traditional/DownVü/SideVü CHIRP Transducer Pair

Garmin CV51M-THP Mid Band Traditional/DownVü/SideVü CHIRP Transducer Pair
