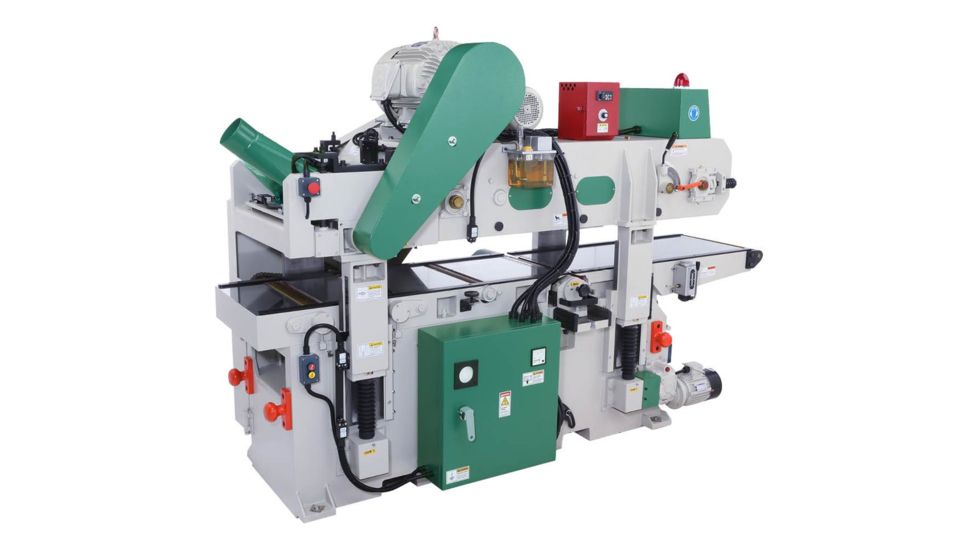

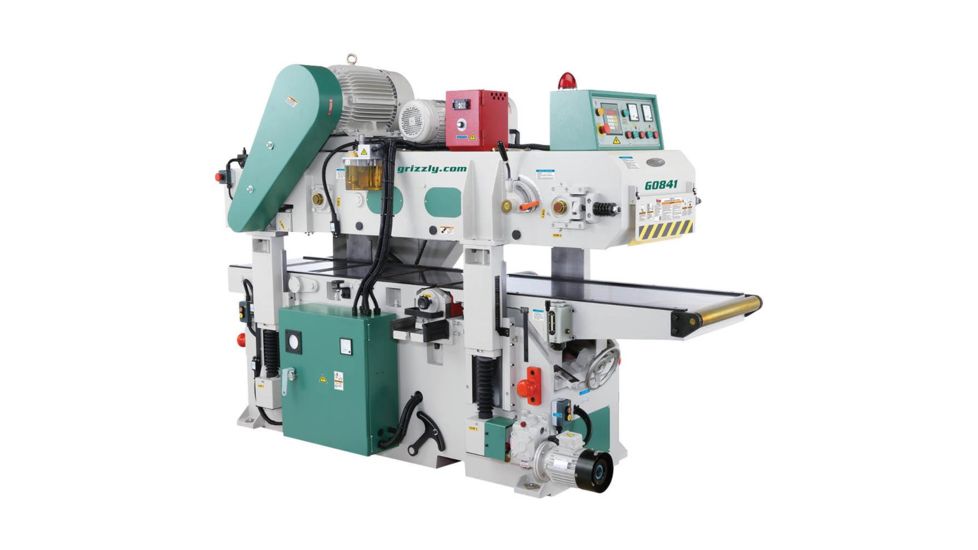

Grizzly Industrial Double-Sided Planer

With one look at the G0841 you will know it is ready for some serious production work. This machine features a 15 HP upper motor with a 10 HP lower motor driving two spiral cutterheads to plane a workpiece in a single pass. The variable-speed feed belt provides adjustable top pressure to tackle heavy cuts with rough-sawn lumber. Simply enter the desired thickness of the finished workpiece on the digital control screen, and the machine self-adjusts with the push of a button. Also equipped with height controls at both ends, providing complete operator control. Maintenance is made simple with a self-lubricating feed belt and an easily serviceable "slide out" cutterhead. Add this machine to your shop and take your production capacity to an entirely new level!

Features of Grizzly Industrial Double-Sided Planer:

• Table equipped with five rollers for greater feeding efficiency
• Motor employs Y-D start
• Feed chain is automatically lubricated
• Belts on bottom cutterhead are easily changed
• Spiral top and bottom cutterheads
• Table surface is chrome-plated and precision-ground for smooth feed and maximum wear-resistance
• Emergency stop buttons are provided at the front and back sides of the machine
• Specifications:
• Bottom cutting motor: 10 HP
• 240V
• 3-phase
• 23A
• Top cutting motor: 15 HP
• 240V
• 3-phase
• 38.5A
• Feed motor: 2 HP
• 240V
• 3-phase
• 6.1A
• Table elevation motor: 1/2 HP
• 240V
• 1.6A
• Table size: 18" x 102"
• Maximum cutting width: 18"
• Maximum stock thickness: 8"
• Maximum cutting depth: 5/16"
• Minimum stock thickness: 1/2"
• Minimum stock length: 12"
• Feed rate: 26-72 FPM
• Cutterhead speed: 4000 RPM
• Cutterhead diameter: 5-1/8"
• Overall size: 106"L x 37"W x 67"H
• Footprint: 74-1/2"L x 27"W
• Approximate shipping weight: 6614 lbs.

Package Contents:

• Grizzly Industrial Double-Sided Planer
