Grizzly Industrial Line Boring Machine

Grizzly Industrial 21 Bit Line Boring Machine G0643
Grizzly Industrial 21 Bit Line Boring Machine G0643
Grizzly Industrial 21 Bit Line Boring Machine G0643
Grizzly Industrial 21 Bit Line Boring Machine G0643
1 of 3 images
Grizzly Industrial 21 Bit Line Boring Machine G0643
Grizzly Industrial 21 Bit Line Boring Machine G0643
2 of 3 images
Grizzly Industrial 21 Bit Line Boring Machine G0643
Grizzly Industrial 21 Bit Line Boring Machine G0643
3 of 3 images
Grizzly Industrial 21 Bit Line Boring Machine G0643

Tap Tap to Zoom

Questions & Answers

Code: 3OT-TLA-GRZL394-G0643

MPN: G0643

UPC: 690550006432

Product No Longer Available

Product Info for Grizzly Industrial Line Boring Machine

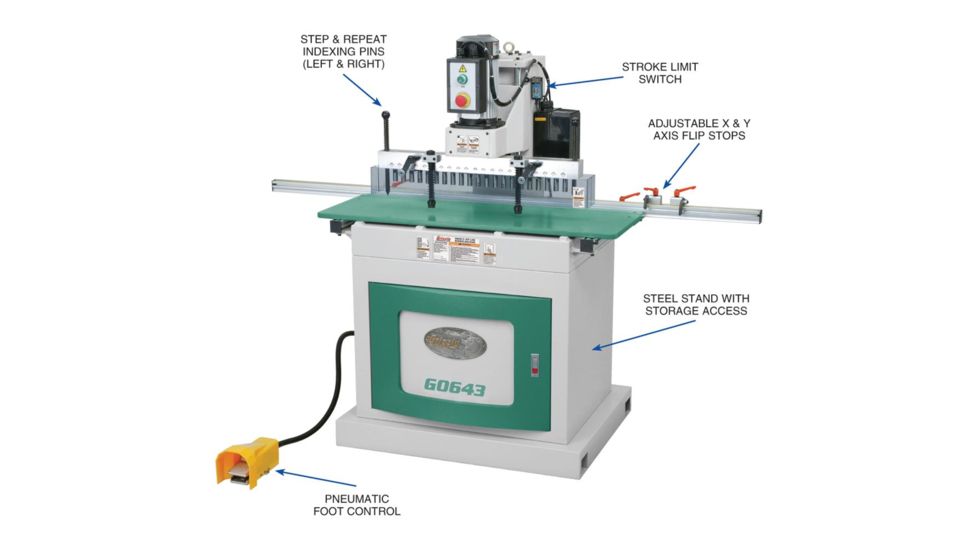

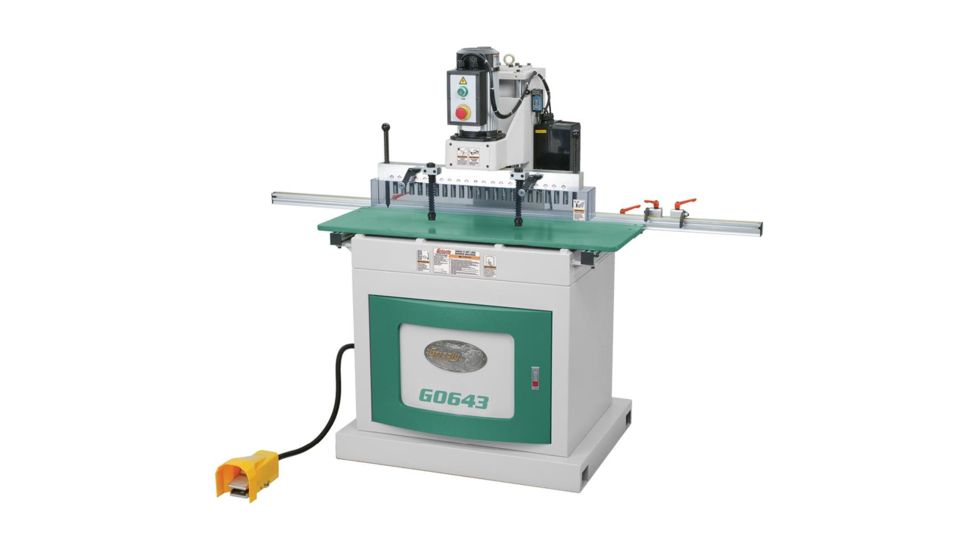

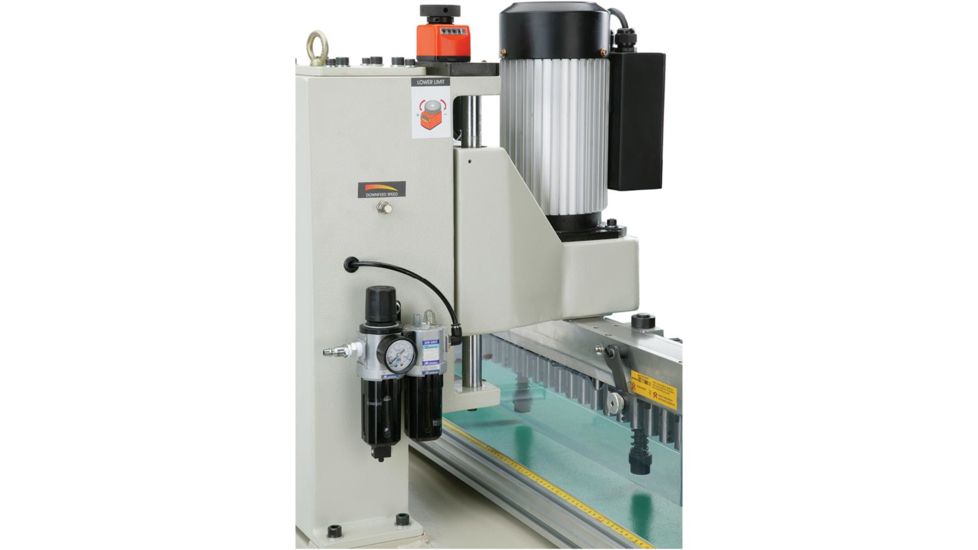

A 15-spindle boring head makes quick work of 32mm cabinet construction. The hand lever activates the work holding clamps and lowers the boring head for easy and efficient drilling. Exact boring depth is also controlled by the down feed indicator. Bits are sold separately.image

Features of Grizzly Industrial Line Boring Machine:

  • Motor: 2 HP
  • 110V/220V
  • single-phase
  • prewired 220V
  • 20.8A/10.4A
  • Operation: Pneumatic
  • Air requirement: 70 PSI
  • Table size: 43-5/16" W x 15-3/4" D
  • Floor to table height: 33-1/4"
  • Maximum stroke: 3-3/8"
  • Maximum throat: 8"
  • Number of spindles on boring head: 21 (10 left & 11 right)
  • Distance between spindle centers: 32mm
  • Fence length: 74-3/4"
  • Overall dimensions: 75"W x 28-3/8"D x 58-1/8"H
  • Footprint: 36-1/4" x 28-3/8"
  • Approximate shipping weight: 514 lbs.

Package Contents:

  • Grizzly Industrial Line Boring Machine
