- Color:
- Blue/Gray
- Battery Capacity:
- 18 Ah
- Included Accessories:
- F2 Terminal
- Battery Type:
- Sealed Lead Acid Battery
Code: 3EQ-BT-12V18ASLABF2-PS-12180-F2
MPN: PS-12180-F2
UPC: 813340010550

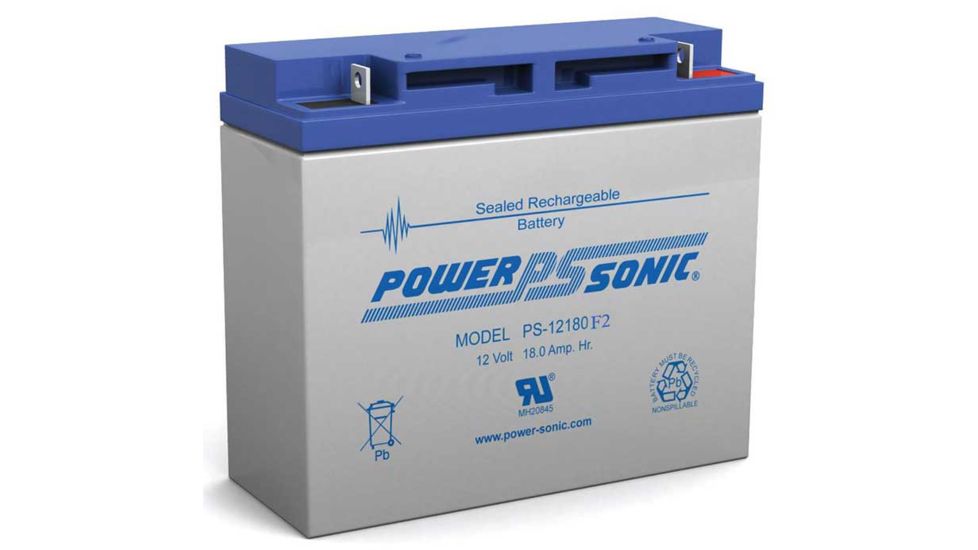

Product Info for Power Sonic 12 Volt 18Ah SLA Battery w/ F2 Terminal
Features/Specifications:
Chemistry:SLA (Sealed Lead Acid)
Case: ABS Plastic
Terminal Type: F2
Nominal Voltage: 12 Volts (6 Cells)
Nominal Capacity:
20-Hour (900mA to 10.5V)...... 18.0 Ah
10-Hour (1.7A to 10.5V)........... 17.0 Ah
5-Hour (3.2A to 10.2V)............ 16.0 Ah
1-Hour (11.1A to 9.0V)............ 11.1 Ah
15-Min. (34.3A to 9.0V)........... 8.58 Ah
Energy Density (20-Hour Rate): 1.53 W-h/in (93.51 W-h/l)
Specific Energy (20-Hour Rate): 17.14 W-h/lb (37.79 W-h/kg)
Max Discharge Current (7 Min.): 54.0A
Max Short-Duration Discharge Current (10 Sec.): 180.0A
Internal Resistance (approx.): 14.0 milliohms
Shelf Life (% of nominal capacity at 68F (20C)):
1 Month ......... 97%
3 Months ........ 91%
6 Months ........ 83%
Charge: -4F (-20C) to 122F (50C)
Discharge: -40F (-40C) to 140F (60C)
Dimensions (LxWxH): 7.13in x 3.00in x 6.59in (181mm x 76mm x 167mm)
Approximate Weight: 12.6 lbs. (5.72 kg)
Features of Power Sonic 12 Volt 18Ah SLA Battery w/ F2 Terminal:
- Chemistry:SLA (Sealed Lead Acid)
- Case: ABS Plastic
- Terminal Type: F2
- Nominal Voltage: 12 Volts (6 Cells)
- Nominal Capacity:
- 20-Hour (900mA to 10.5V).....
- 18.0 Ah
- 10-Hour (1.7A to 10.5V)..........
- 17.0 Ah
- 5-Hour (3.2A to 10.2V)...........
- 16.0 Ah
- 1-Hour (11.1A to 9.0V)...........
- 11.1 Ah
- 15-Min
- (34.3A to 9.0V)..........
- 8.58 Ah
- Energy Density (20-Hour Rate): 1.53 W-h/in (93.51 W-h/l)
- Specific Energy (20-Hour Rate): 17.14 W-h/lb (37.79 W-h/kg)
- Max Discharge Current (7 Min.): 54.0A
- Max Short-Duration Discharge Current (10 Sec.): 180.0A
- Internal Resistance (approx.): 14.0 milliohms
- Shelf Life (% of nominal capacity at 68F (20C)):
- 1 Month ........
- 97%
- 3 Months .......
- 91%
- 6 Months .......
- 83%
- Charge: -4F (-20C) to 122F (50C)
- Discharge: -40F (-40C) to 140F (60C)
- Dimensions (LxWxH): 7.13in x 3.00in x 6.59in (181mm x 76mm x 167mm)
- Approximate Weight: 12.6 lbs
- (5.72 kg)
Package Contents:
- Power Sonic 12 Volt 18Ah SLA Battery w/ F2 Terminal
