Ronstan Series 40 Ratchet Orbit Block RF46100 w/ Free S&H

Ronstan Series 40 Ratchet Orbit Block - Single - Auto - Swivel Shackle Head 55220
Ronstan Series 40 Ratchet Orbit Block - Single - Auto - Swivel Shackle Head 55220
1 of 1 images

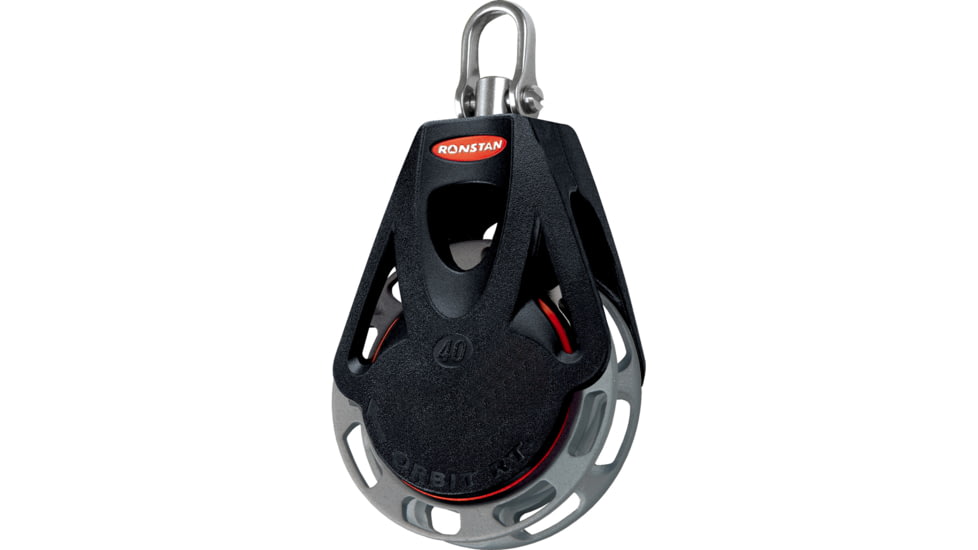

Ronstan Series 40 Ratchet Orbit Block - Single - Auto - Swivel Shackle Head 55220

Tap Tap to Zoom

Questions & Answers

New Product

See more new Ronstan Boating & Marine items
We’ve just added this new product to Armabear. Be the first to get it!
Color:
Black

Code: 740-F78-CWR14560-RF46100

MPN: RF46100

UPC: 9316800459513

List: $90.98Save 15%
$77.33
AB Rewards$1.55

Product Info for Ronstan Series 40 Ratchet Orbit Block

Specifications for Ronstan Series 40 Ratchet Orbit Block:

Manufacturer: Ronstan
Color: Black

Features of Ronstan Series 40 Ratchet Orbit Block

  • Up to 14:1 holding power - highest available!
  • Smooth easing of sheets
  • Fully Automatic load sensing ratchet engagemen
  • Swivel shackle head for unlmited block rotation
  • Stainless steel shackle head for ultimate durability and compatibility with harsh fixing points
  • Applications:
  • Dinghy mainsheet systems
  • Mainsheet fine tune systems on sportsboats & small keel boats
  • Mainsheet systems on sportsboats using RF7 mainsheet swivel cleat unit
  • Spinnaker and job sheets on dinghies - especially modern asymmetric classes
  • Control line applications on larger yachts
  • Materials:
  • Sheave: Hard anodised Aluminium
  • Ball Bearings: High compression strength carbon black Acetal
  • Frame/Cheeks: Toughened glass fiber reinforced Nylon
  • Rope Link: UV stabilized multi-strand impregnated SK75 Dyneema
  • :
  • Sheave : 40mm(1-9/16")
  • Max. Rope : 9mm(5/16")
  • M.W.L.: 175kg(385lbs)
  • B. L.: 500kg(1100lbs)
  • Weight: 44g(1.5oz)

Package Contents:

  • Ronstan Series 40 Ratchet Orbit Block

Ronstan Series 40 Ratchet Orbit Block Orderable Models

List of Orderable Models

  • Ronstan Series 40 Ratchet Orbit Block - Single - Auto - Swivel Shackle Head, RF46100 , MPN: RF46100 , UPC: 9316800459513 , Code: 740-F78-CWR14560-RF46100
